Designed and manufactured in Mexico by eGraf Equipos

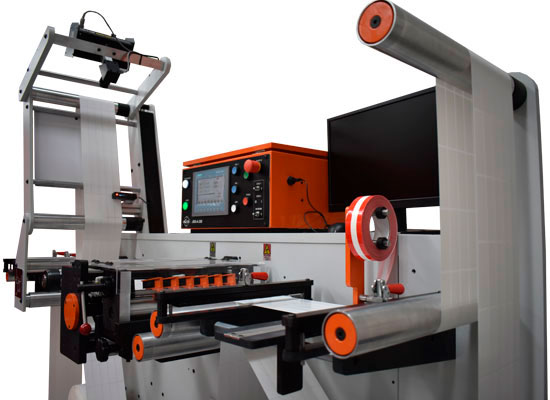

JBS-A-330 narrow web label slitter rewinder is an equipment that allows label inspection, slitting and rewinding in an automated way.

It has a high automatization level, ergonomic design, excellent performance and optional 100% inspection system. Improves label inspection efficiency, speed and rewinding quality.

Automatic

automatic label slitter rewinder

Ergonomic

ergonomic label slitter rewinder

Modular

modular label slitter rewinder

Quality

quality label slitter rewinder

Safety

safety label slitter rewinder

Automated equipment

• Automatic tension control

For a better label rewinding. Storage capacity of more than 100 parameters predefined by the user.

• Counting system and automatic stop

JBS-A-330 label slitter rewinder features an automatic stop system by label count or by roll length.

• Fast stop system

Stops the slitter rewinder in maximum 2 seconds, allowing to replace defective product before it reaches the rewinder.

• Controlled stop positioning

Works altogether with our missing labels and flags detection system (optional) or with a 100% inspection system such as AVT SmartScan*, BST PowerScope* or similar (optional). Allows positioning automatically defective material right in the splice table to be replaced.

• Automatic inspection system

JBS-A-330 label slitter rewinder is prepared to have as optional a third party 100% inspection system such as AVT SmartScan*, BST PowerScope* or similar, as well as our missing labels and flags detection system.

* SmartScan is a registered brand from Advance Vision Technology LTD
* PowerScope is a registered brand from BST Eltromat

Ergonomic and productivity

• Ergonomic

JBS-A-330 slitter rewinder is configured in a way in which the user can inspect, detect flags, access the control panel, make splices, adjust slitting and change rolls without moving from the same place.

• Splice tables

One at the beginning (optional) and one at the end, allowing to discard defective material in two different points without having to cover the complete web path.

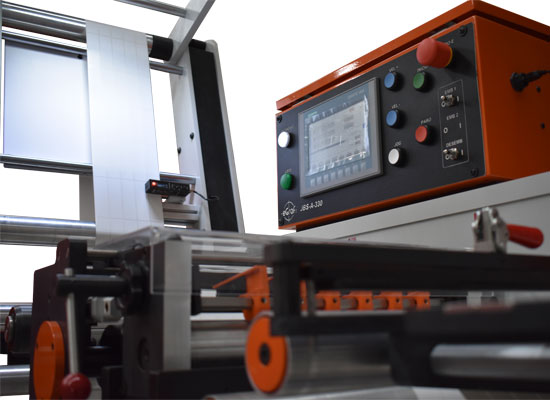

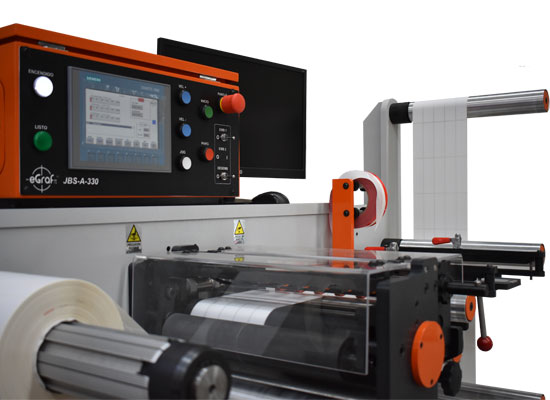

• Control panel

Intuitive and user friendly.

Modular design

• Slitting unit

Features a razor blade slitting system, easy and fast to position, as well as a fast-change unit for rotary shear slitting (optional).

• Automatic inspection system

JBS-A-330 label slitter rewinder is prepared to have as optional a third party 100% inspection systems as well as our missing labels and flags detection system.

• Rewinders

Rewinder coupled directly to an inverter motor without pneumatic nor magnetic clutch, maintenance-free, that produces a uniform rewinding. As optional, a second rewinder can be added.

Internationally well-known components

• 100% inspection sysmte AVT SmartScan Erhardt Leimer (optional)

• BST web guider

• Convertech air shaft

• Checkline LED stroboscope (optional)

• Siemens automation and control system

• Siemens speed control drives

• Siemens HMI touch screen control panel

• Baldor Reliance Heavy Duty motors

• Quality finishes: anodized, blued, electrostatic painting

* SmartScan is a registered brand from Advance Vision Technology LTD
* BST is a registered brand from BST Eltromat
* Convertech is a registered brand from Double E Company
* Checkline is a registered brand from Electromatic Equipment Co.
* Siemens is a registered brand from Siemenes AG
* Baldor Reliance is a registered brand from ABB Motors and Mechanical Inc.

User safety

• Safety systems

Alarms and sensors that avoids start up if the machine is not prepared.

• Slitting unit and draw roll

Safety guards that stop or avoid the label slitter rewinder start up if opened.

• Splice tables

Sensors that avoid start up when clamps are activated.

• Expandable shafts

System that avoids start up when shafts are deactivated.

Specifications >> JBS-A-330
JBS-A-330 Comparison with
JBS-B-330
Maximum width 330 mm
13 in
330 mm
13 in
Minimum width* 8 cm
3.15 in
7.6 cm
3 in
Maximum speed* 275 m/min
900 ft/min
175 m/min
575 ft/min
Unwinder maximum diameter 79 cm
31 in
61 cm
24 in
Rewinder maximum diameter 50 cm
20 in
35 cm
14 in
Expandable shaft diameter 7.6 cm
3 in
7.6 cm
3 in
Slitting razor blade system
Slitting rotary shear system Optional x
LED strobe light Optional Optional
Missing labels and flags detection system Optional Optional
100% inspection system Optional x
Controlled stop positioning x
Automatic stop with counter
Infrared sensor for opaque label count
Capacitive sensor for transparent label count Optional Optional
Roll length counting system
Automatic tension control x
Manual tension control
Unwinder braking system Magnetic particles Pneumatic
Second splice table Optional Optional
Second rewinder Optional x
HMI touch screen x
Dimensions 201 x 197 x 102 cm
79 x 77.5 x 40 in
171.5 x 197 x 102 cm
67.5 x 77.5 x 40 in
Web path length 10 m
33 ft
8 m
26 ft
Web path extension x Optional
2 m
6.5 ft
* Minimum width and maximum speed might vary dependind on the material used.
